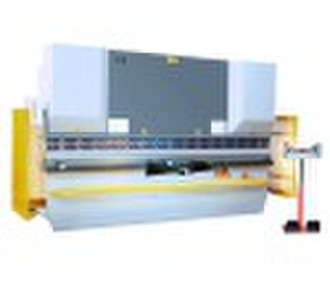

Hydraulic Press Brake (WC67Y series)

Main features The press brake adopts whole steel welded structure. And it has enough intensity and rigidity. Ram synchronization during the stroke is controlled by a mechanical torque synchro system, which is steady and reliable. And the stroke of the ram is adjusted in the inter cylinders. The ram stroke and the back gauge can be adjusted by motor and manual adjustment. And it can be displayed by counters. A hydraulic system is used for the machine. A feeding valve is used to speed up the ram travel to save energy. The operations of the machine are realized by the hydraulic valves. A Low noise gear pump is used to reduce the noise of the machine, which can achieve the environmental standard. The dies are made of carbon steel, which have good rigidity and durable. And they are equipped with adjusting wedges of high precision. Word-class elements are used for the electric system of the machine, which is safe and reliable. There are multi catenation and interlock in the electric system, which can avoid mistakes. The machine is equipped with fully safety guard and emergency stop which can ensure the safety of the operators. The position of the back gauge and the stroke of the ram are displayed by digital displays. The bending angle can be adjusted according to the displays. TypeNominal Pressure(KN)Length of Working Table (mm)Distance Between two columns(mm)Throat Depth (mm)Travel Distance of Back-gauge (mm)Stroke of the Ram (mm)Stroke Adjustment of the Ram (mm)Stroke Number (time/min)Max.Open Height (mm)Oil Tank VolMotor Power (KW)WC67Y-20/13202001320102020040080701024580L4WC67Y-30/13203001320102020040080701024580L4WC67Y-40/132040013201020200600100801034085L4WC67Y-40/200040020001675200600100808340140L4WC67Y-63/250063025002080250600100808340230L5.5WC67Y-80/250080025002080250600100808355230L7.5WC67Y-80/320080032002700250600100808355300L7.5WC67Y-100/25001000250020503206001501208415230L7.5WC67Y-100/32001000320027003206001501208415300L7.5WC67Y-100/40001000400031503206001501208415370L11WC67Y-125/32001250320027003206001501208415300L7.5WC67Y-125/36001250360028503206001501208415350L11WC67Y-125/40001250400031503206001501208415370L11WC67Y-140/40001400400031503206001501208415370L11WC67Y-160/32001600320025003206002001608465300L11WC67Y-160/40001600400031503206002001608465370L11WC67Y-200/32002000320026003206002001608465300L15WC67Y-200/40002000400031503206002001608465370L15WC67Y-250/40002500400031504006002502008660370L18.5WC67Y-400/40004000400032804006003202506735415L37
